Hollon Safe Locks Instructions & Manuals

Sargent & Greenleaf Spartan D-Drive Electronic Lock

Features: Completely redesigned locking mechanism based on the proven security of a rugged, motorized blocking device. Lock bolt retraction and extension is controlled by the movement of the safe’s boltwork.The S&G Spartan PivotBolt automatically locks to re-secure the safe whenever the safe’s boltwork fully extends to the closed position. The PivotBolt is connected to its keypad only by cable. There’s no rigid spindle, so the lock does not have to be placed behind the keypad. It can be anywhere on the inside of the safe door.		External battery placement puts the battery inside the keypad, where it can be easily replaced, even with the safe locked. And efficient lock design means the battery must be changed significantly less often. The S&G Spartan lock body is the same size and mounting footprint as other standard S&G locks, allowing for easy retrofit without the need for boltwork or mounting screw location changes. Manager can add, delete, or temporarily enable or disable the 2nd user code at any time. Optional MRC (Management Reset Code). Two-year warranty. Lock bolt relock verification signal (double beep/LED flash). Penalty lock-out after three wrong code entry attempts.
Tested to 10,000 openings on a single Duracell® 9-volt alkaline battery. Low battery signal. Beeper volume toggle. Uses motorized bolt-blocking technology; not shock-susceptible solenoids. UL Listed Type 1 EMP Military Grade Electronic Lock		Opening Lock, Adding and Deleting Code
Changing Battery in D-Drive Lock		Downloads: S&G Spartan D-Drive Operating Instructions S&G Spartan/Titan EMP Certificate S&G Spartan/ Titan EMP Press Release

Sargent & Greenleaf Spartan & Titan Swingbolt Electronic Lock

Features:

Completely redesigned locking mechanism based on the proven security of a rugged, motorized blocking device.
Lock bolt retraction and extension is controlled by the movement of the safe’s boltwork.The S&G Spartan™ PivotBolt™ automatically locks to re-secure the safe whenever the safe’s boltwork fully extends to the closed position.
The Spartan™ PivotBolt™ Advantage:
The PivotBolt™ is connected to its keypad only by cable.
There’s no rigid spindle, so the lock does not have to be placed behind the keypad. It can be anywhere on the inside of the safe door.
External battery placement puts the battery inside the keypad, where it can be easily replaced, even with the safe locked. And efficient lock design means the battery must be changed significantly less often.
The S&G Spartan lock body is the same size and mounting footprint as other standard S&G locks, allowing for easy retrofit without the need for boltwork or mounting screw location changes. Plus, it’s universally handed for RH, LH, VU, and VD mounting.

Simple, 2-user lock.
Manager can add, delete, or temporarily enable or disable the 2nd user code at any time.
Optional MRC (Management Reset Code).
Two-year warranty.
Lock bolt relock verification signal (double beep/LED flash).
Penalty lock-out after three wrong code entry attempts.
Tested to 10,000 openings on a single Duracell® 9-volt alkaline battery.
Low battery signal.
Beeper volume toggle.
Uses motorized bolt-blocking technology; not shock-susceptible solenoids.
UL Listed Type 1 EMP Military Grade Electronic Lock

Opening the Spartan E-Lock

Deleting User

Adding User

Downloads:

Sargent & Greenleaf Titan D-Drive Electronic Lock

Features: Reliable, secure motor actuated locking mechanism. Lock bolt is retracted and extened by manually rotating the keypad bezel. One million codes to choose from. Field programmable (via keypad) for single control, and employee/manager modes; changeable at any time. Default operating mode is single control, but the lock can easily be set to a permanent dual control mode. One master code, one supervisor code, one time delay override code, seven user codes (eight user codes if time delay override is not enabled). Factory programmed Management Reset Code can be changed to an MRC of your own choosing during the initial lock setup (MRC is not available if the lock is set to dual control mode).		Programmable time delay of one to ninety-nine minutes can easily be programmed and activated from the keypad. Time delay opening window can be set from one to fifteen minutes. Penalty lockout feature shuts the lock down for ten minutes if five or more incorrect codes are entered in a row to deter random code entry attempts. All programming is accomplished via the keypad; no special programming tools required. Deadlocking, motor-blocked bolt withstands over 225 lbs. of end and side pressure.
Changing Combination		Changing Battery and Opening D-Drive Lock
Adjusting Volume		Adding & Deleting Code
Downloads: S&G Titan Operating Instructions S&G Spartan/Titan EMP Certificate S&G Spartan/Titan EMP Press Release

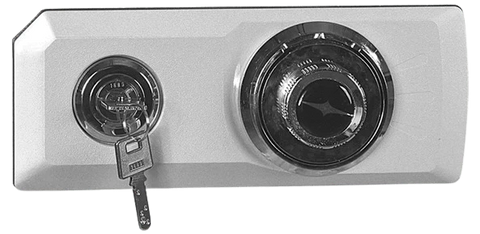

Sargent & Greenleaf Dial Combination Lock

Features:

UL Listed Group 2 & 2M Dials and Locks
Options: Black & White, Chrome and Black Platinum Spy-Guard

Opening the Lock and Changing Combination

Downloads:

SecuRam SafeLogic Basic Electronic Lock

Lock Body: UL Listed Type 1 Motor-driven Stainless steel bolt and internal moving parts Unique two-thousand time heavy duty aging test on each unit to insure reliability Patented design offers ultra low power consumption-only 1/10 of similar products on the market		Keypad Features: 2 Codes: Manager Code and User Code 9 Volt Battery powers the system 10,000+ openings on a 9 Volt battery 4 minute Penalty LockOut upon entry of 4 incorrect codes Rugged Stainless Steel EntryPad Housing Reset button to set the lock back to factory default Standard footprint and mounting pattern, easy retrofit for any mechanical or electronic safe lock Chrome Finish
Overview of SecuRam SafeLogic Basic		How to Change Code
How to Delete User Codes		Penalty Time Incorrect Code Error
Downloads SecuRam SafeLogic E-Lock Basic Instructions SecuRam SafeLogic E-Lock Manager Instructions SecuRam SafeLogic Installation Instructions SecuRam SafeLogic P and PN Series Instructions

SecuRam ScanLogic Basic Biometric Lock

Features

Fast 1 second fingerprint access, sensor quickly reads your fingerprint in any position and automatically unlocks
Enroll up to (15) Fingerprints
Administrator fingerprint or code is used to add new fingerprints
Uses active RF sensor for fast authentication and reliable service
Audible beeps and green/red light indicators makes programming easy
Stealth mode – turn beeper on/off
4,000+ openings on a 9 Volt battery (AC Power optional)
Standard footprint and mounting pattern, easy retrofit for any mechanical or electronic safe lock

Changing the battery is easy with our SureLock Battery Management system.
Release the lever and pull down on battery compartment
SureLock Battery Management
Finishes available: Matte Black
Can be paired with any SECURAM Lock: SwingBolt, DeadBolt, SpringBolt and StrikeBolt.
Simply place your enrolled finger on the sensor and turn the safe handle. That’s it.
For code access, simply enter your 6 digit code
ScanLogic Basic supports 3 codes and 5 associated fingerprints per code for a total of 15 fingerprints
SureLock Battery Management System-allows for quick battery access and easy change-no need to remove the keypad

ScanLogic Basic Overview and Programming

Downloads

SecuRam ScanLogic Biometric Lock

Lock Body Features:

UL Listed Type
Motor-driven
Stainless steel bolt and internal moving parts
Unique two-thousand time heavy duty aging test on each unit to insure reliability
Patented design offers ultra low power consumption-only 1/10 of similar products on the market

Keypad Features:

10 Fingerprints and 1 Administrator
10 digit Administrator Code provides programming and access rights
Fast 2 Second response time
Penalty Lock Out after four incorrect entries
Every SecuRam lock undergoes a 2,000 cycle quality management program before it leaves the manufacturing facility
Operates on one 9 Volt battery

Opening the lock and Enrolling the Admin Fingerprint

Enrolling Additional Users

Deleting Fingerprints

Downloads

SecuRam ScanLogic Operating Instructions

SecuRam ProLogic L22 Electronic Lock

Lock Body Features: UL Listed Type 1 Motor-driven Stainless steel bolt and internal moving parts Unique two-thousand time heavy duty aging test on each unit to insure reliability Patented design offers ultra low power consumption-only 1/10 of similar products on the market		Keypad Features: 30 User Codes Super Code 2 Manager Code 28 User Codes 6 Digit Code 200 Event date and time stamped audit trail Time Delay Time Delay Overide Codes Recovery Code Single or Dual Control Modes Can Control up to 4 locks w/ Lock Sequencing
Overview of SecuRam ProLogic L22		Enrolling New User Code
Changing Code		Setting Date and Time
Viewing Audit Trail		Enabling Dual Mode
Downloads SecuRam ProLogic L22 Operating Instructions SecuRam ProLogic L22 Quick Start Guide SecuRam ProLogic L22 Product Catalog

SecuRam ProLogic L62 Electronic Lock

Keypad Features: 30 User Codes Super Code 2 Manager Code 28 User Codes 6 Digit Code 500 Event date and time stamp audit trail Wireless audit download to Wireless Link Time Delay 0-99min Time Delay Overide Codes Recovery Code Single and Dual Control Modes Enable/Disable User Codes Max Door Open Time – Alert Dual Mode Group – set some users in Dual Mode Auto DayLight Savings Time Can Control up to 4 locks w/ Lock Sequencing Software Package including Wireless Link sold separately WSK-Audit		Lock Body Features: UL Listed Type 1 Motor-driven Stainless steel bolt and internal moving parts Unique two-thousand time heavy duty aging test on each unit to insure reliability Patented design offers ultra low power consumption-only 1/10 of similar products on the market
Overview SecuRam ProLogic L62		Enrolling New User Code
Changing Code		Setting Date and Time
Viewing Audit Trail		Enabling Dual Mode
Downloads SecuRam ProLogic L62 Operating Instructions

SecuRam ProLogic L66 Electronic Lock

Features: 30 Codes: 2 Manager Codes and 28 User Codes Super Code for programming management and control 1000 event audit trail can be viewed on-screen Wireless Audit Download to Wireless Link TimeLock, Holiday Scheduling Time Delay 0-99min; Time Window 1-15min Time Delay Override Codes – selectable Time Delay Override OTC Recovery code can be used to reset the controller to factory default Single or Dual Control Modes Dual Mode Group – set some users in Dual Mode Auto DayLight Savings Time Ability to choose to Obfuscate Code upon entry		EntryPad can control up to 4 locks with programmable lock sequence Supports single user mode and dual user mode Duress mode with programmable shift feature SureLock Battery Management and AC power optional Standard footprint and mounting pattern, easy retrofit for any mechanical or electronic safe lock Finishes available: Chrome Can be paired with any SECURAM Lock: SwingBolt, SwingBolt w/ Status, DeadBolt, SpringBolt and StrikeBolt. OLED Menu system guides the user through access and programming procedures View Audit trail records on screen or download wirelessly to Lock Management software or Wireless Link. Every SECURAM lock undergoes a 2,000 cycle quality management program before it leaves the manufacturing facility. Unprecedented commitment to quality and reliability.
Overview SecuRam ProLogic L66		Enrolling New User Code
Changing Code		Setting Date and Time
Viewing Audit Trail		Enabling Dual Mode
Wireless Link Extracting Audit Trail		Downloads ProLogic L66 Data Sheet Quickstart Guide Operation Manual

SecuRam SafeLogic Xtreme - Chrome Electronic Lock

Lock Body Features: EMP Proof Electronic and Mechanical Access Enter Code for Digital Access Dial Combination for Spin Dial Access 2 User Codes – 6 Digit Code Manager Code User Code 1 Combination – Default 50-50-50 Instant AutoLock feature BackLit Entrypad + SpinDial Lighting Penalty LockOut after 4 incorrect codes 3 Wheel Mechanical lock Mechanism Standard footprint makes for easy retrofit Bluetooth Connectivity (Optional)		Finishes: Chrome-In Stock Brass-InStock Nickel Black Chrome
Overview of SecuRam SafeLogic Xtreme		Changing Code and Dial Combination
Downloads: SecuRam SafeLogic Xtreme Operating Instructions

SecuRam ProLogic Xtreme Electronic Lock

Lock Body Features: 30 Codes: Super Code, Manager Codes and 28 User Code PLUS SpinDial 3 Wheel Combination Single or Dual Mode Time Delay 0-99min; Time Window 1-15min Audit trail – time and date stamped Remotely programmable *Note: for Left Handed bolt motion, please order the LH Adaptor		Finishes available: Chrome Brass Black Chrome Nickel
Overview of SecuRam ProLogic Xtreme		Downloads: SecuRam ProLogic Xtreme Operating Instructions

Electronic Lock for Hollon Safe Models: HS-310E, HS-360E, HS-500E, HS-530WE, HS-610E

Features: Available for all Fire & Burglary and Home and Office Safes High reliability 4 total users 3 minute lock out penalty mode after three incorrect code entries
Hollon HS Electronic Lock Operating Instructions		Downloads: Home and Office Safe Operating Instructions Fire & Burglary Instructions
